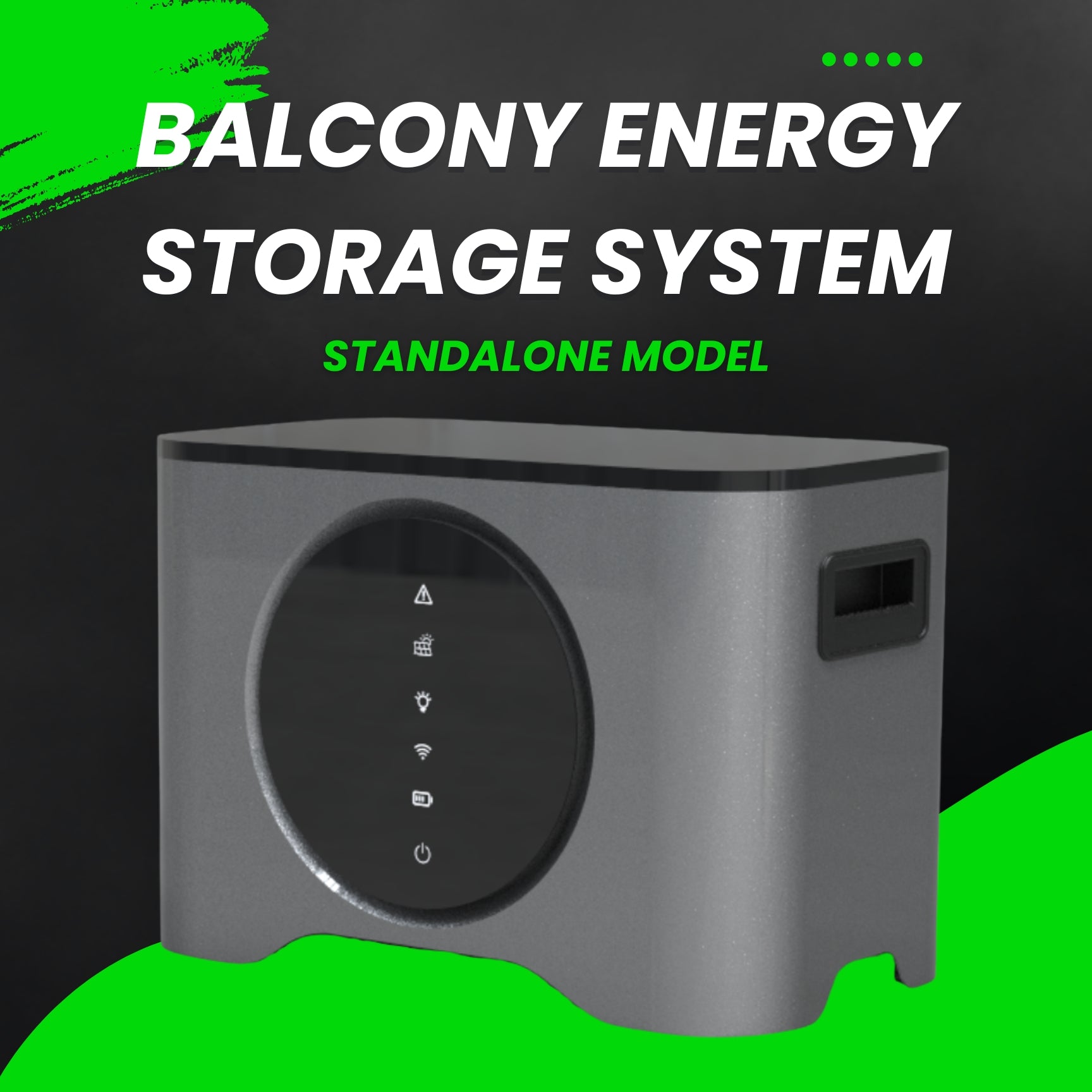

YT1-2048
YT1-2048
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
|
Battery
|
Battery Type
|
LiFePO4
|
|
Rated Voltage
|
51.2V
|
|
|
Battery Capacity
|
2048Wh
|
|
|
Cycle Life
|
6000（25℃）
|
|
|
Discharge Depth
|
90%
|
|
|
Maximum Charging Current
|
40A
|
|
|
Solar Panel Input
|
Maximum Input Power
|
800W×2 Max
|
|
MPPT Voltage Range
|
18V-60V
|
|
|
Start-up Voltage
|
12V
|
|
|
Operating Voltage Range
|
12V-60V
|
|
|
Input Conversion Efficiency
|
98% Max
|
|
|
Maximum Input Voltage
|
60V
|
|
|
Maximum Input Current per Channel
|
25A
|
|
|
Maximum Input Short-circuit Protection Current per Channel
|
90A
|
|
|
Number of MPPT
|
2
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
|
Inverter Output
|
Maximum Output Power
|
800W×2 Max
|
|
Output Conversion Efficiency
|
98% Max
|
|
|
Operating Voltage Range
|
18V~55V
|
|
|
Maximum Output Voltage
|
55V
|
|
|
Maximum Output Current per Channel
|
28
|
|
|
Maximum Input Short-circuit Protection Current per Channel
|
90A
|
|
|
General Parameters
|
Product Dimensions
|
400*230*273mm
|
|
Net Weight
|
≈21.8kg
|
|
|
Charging Operating Temperature
|
0℃～55℃
|
|
|
Discharging Operating Temperature
|
-20℃~65℃
|
|
|
Protection Grade
|
IP65
|
|
|
Communication Mode
|
WIFI
|
|
|
Heat Dissipation Mode
|
Natural cooling
|
|
|
Packaging Dimensions
|
475*300*360mm
|
