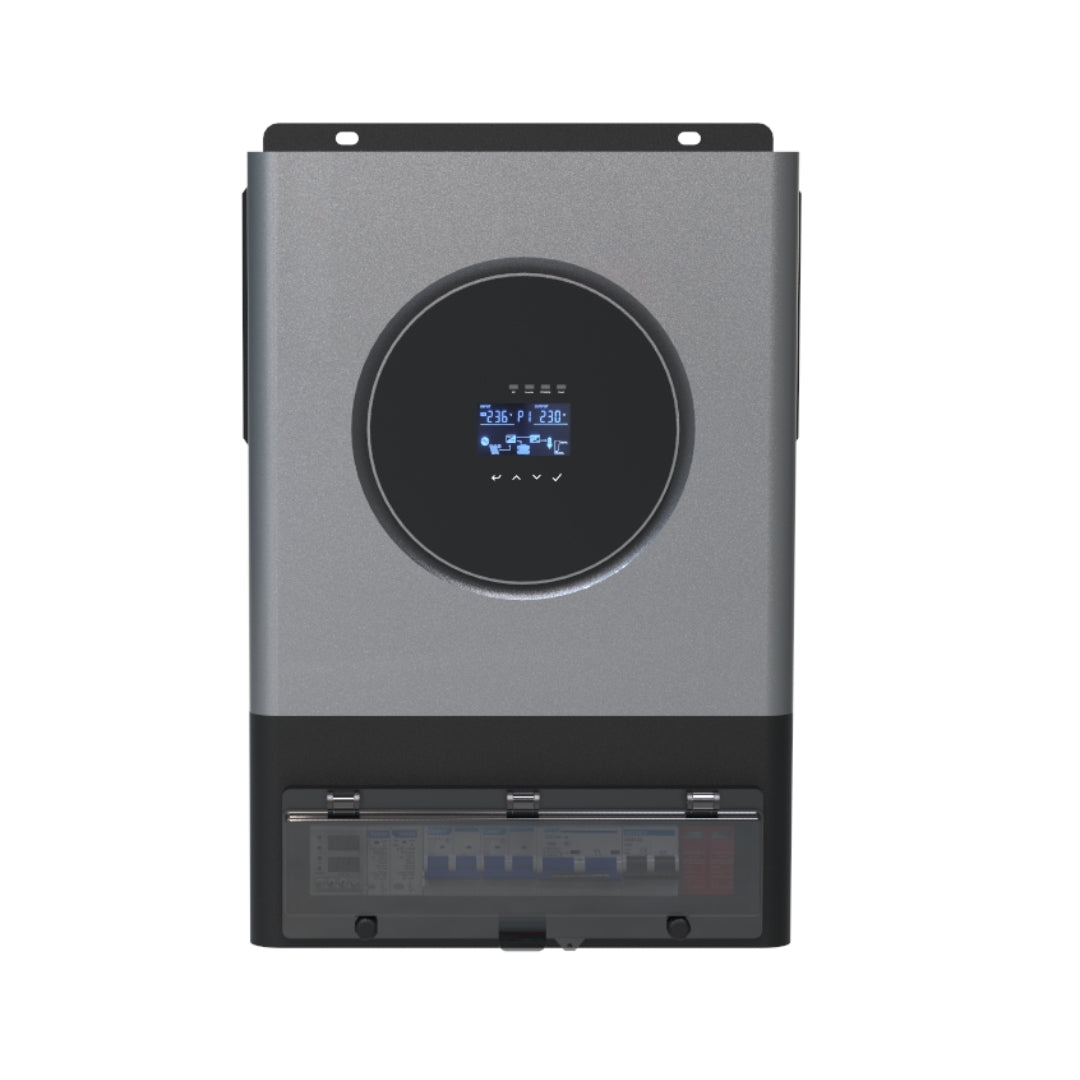

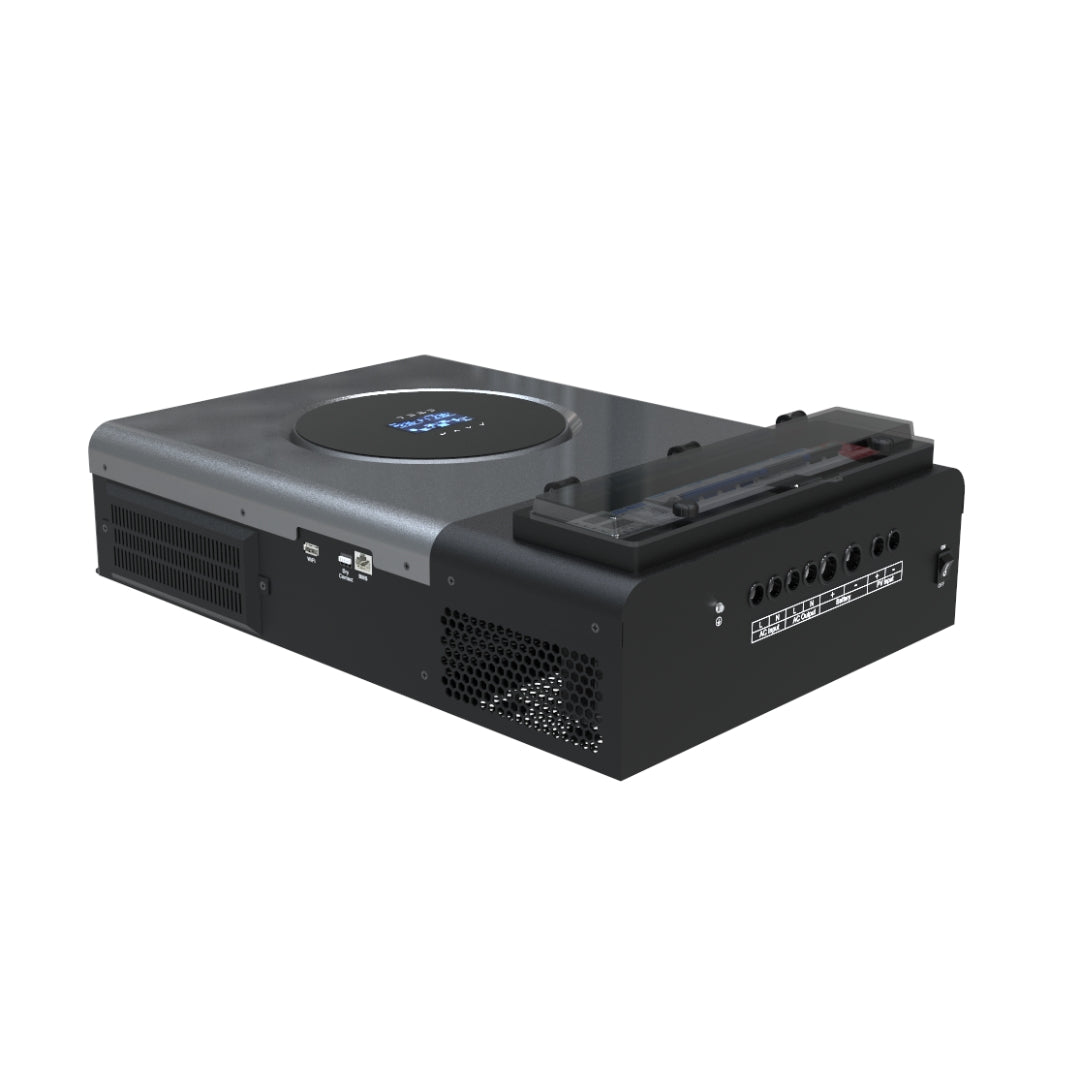

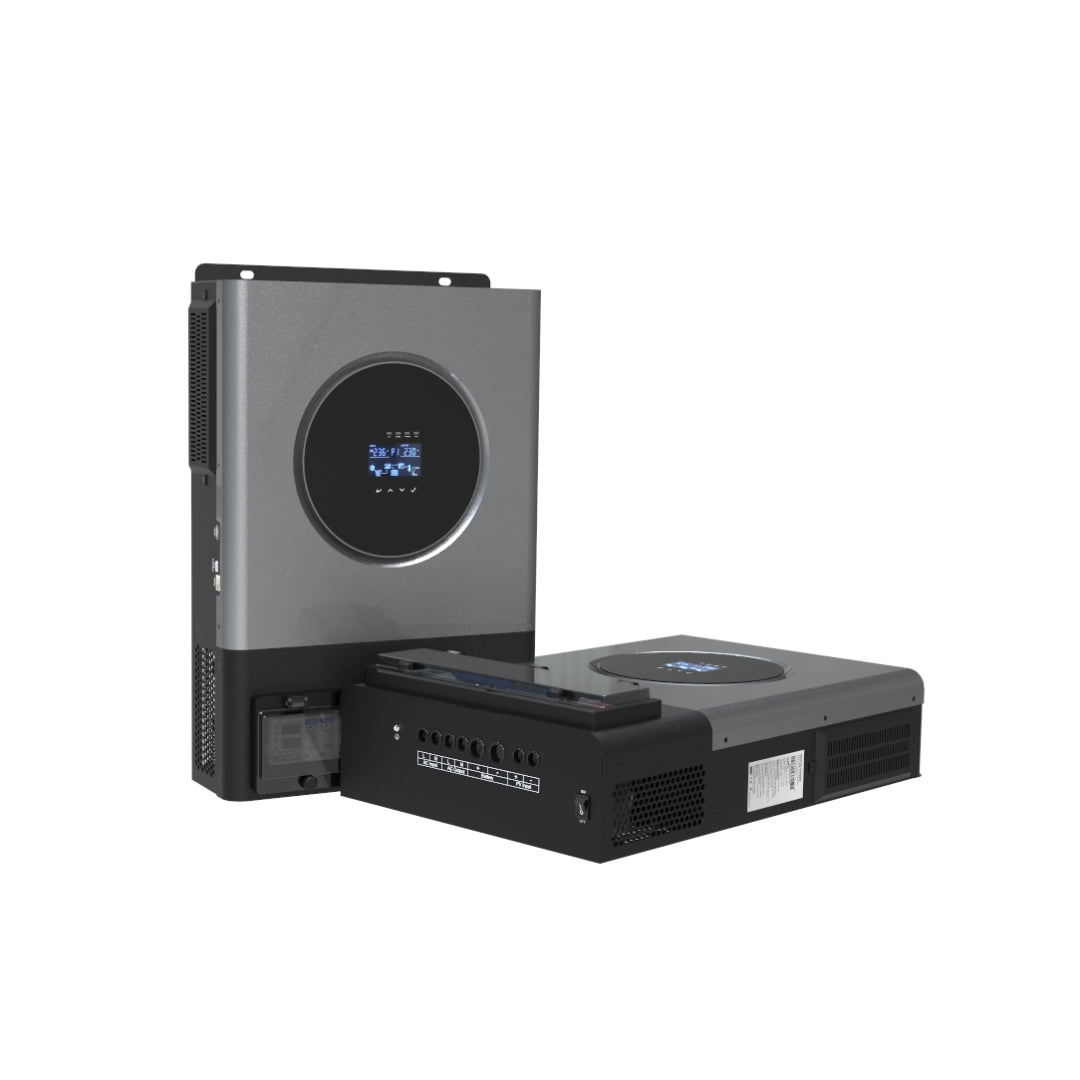

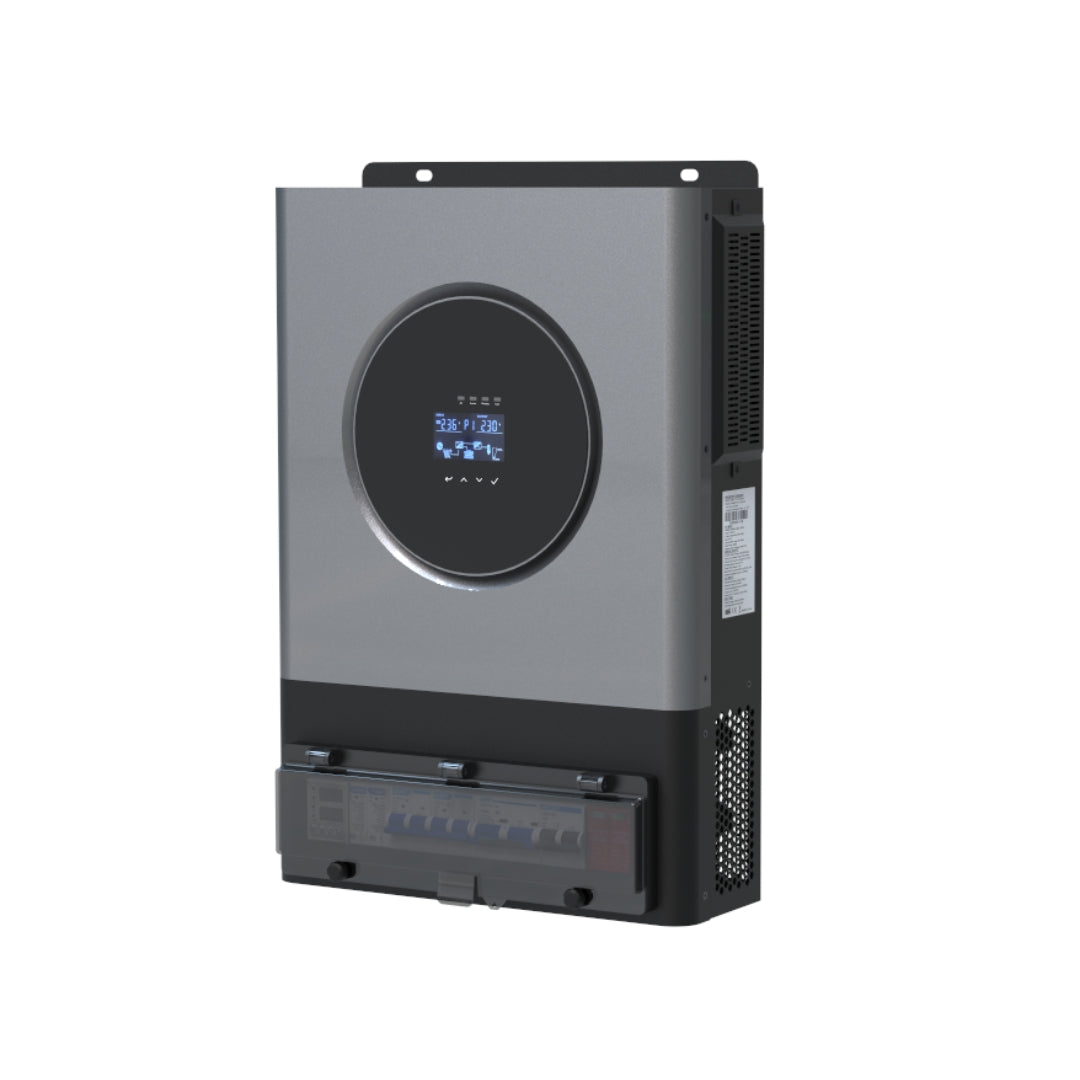

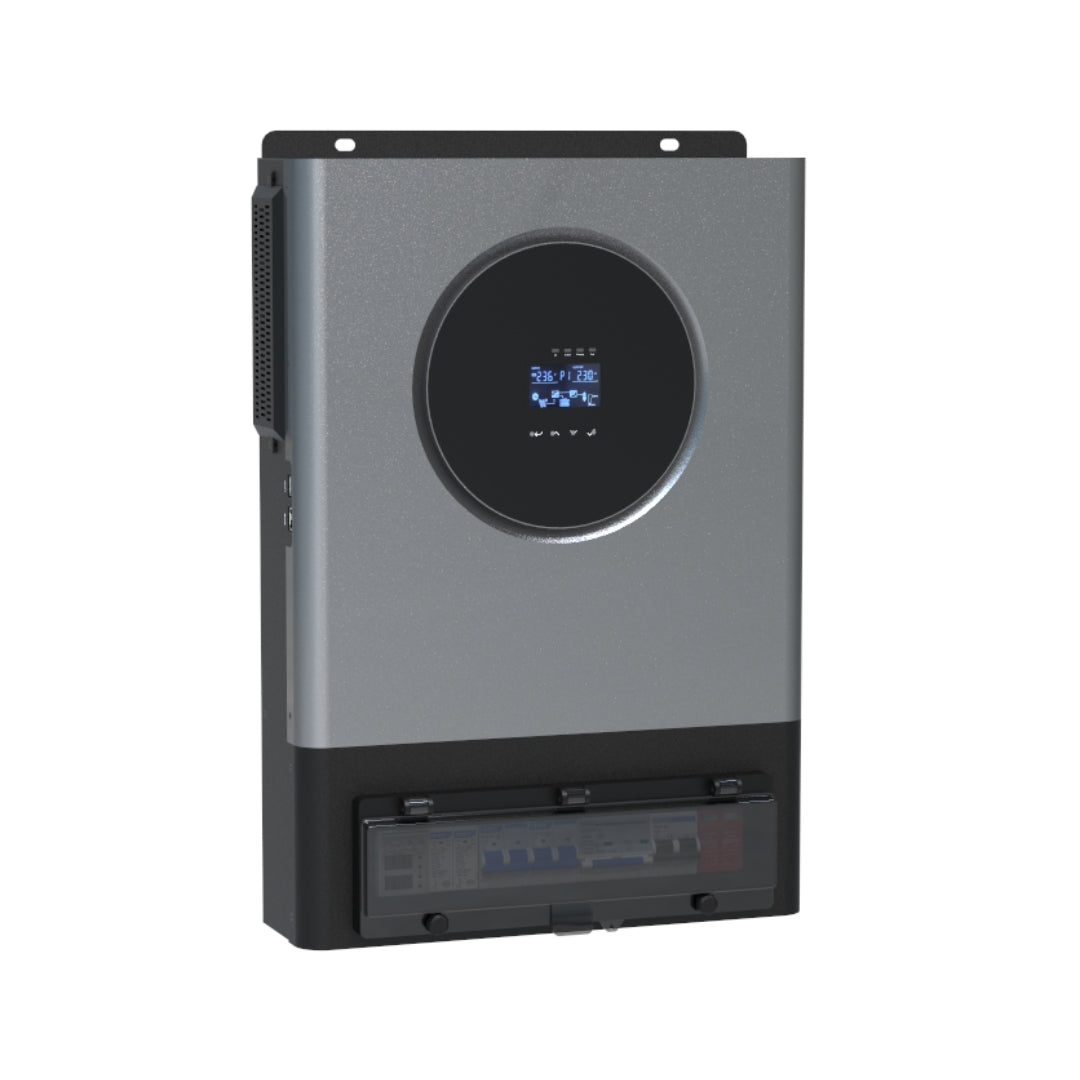

LW3K6-24 Pro
LW3K6-24 Pro
Regular price
$238.00
Regular price
Sale price
$238.00
Unit price
per
|
AC Input
|
Rated Input Voltage (VAC)
|
208 / 220 / 230 / 240; L+N+PE
|
|
Voltage Range (VAC)
|
90~280±3 (normal mode); 170~280±3 (UPS mode)
|
|
|
Frequency (Hz)
|
50 / 60 (Auto Adaptive)
|
|
|
AC Output
|
Rated Capacity (kW)
|
3.6
|
|
Surge Power (kVA)
|
7.2
|
|
|
Voltage (VAC)
|
208 / 220 / 230 / 240
|
|
|
Power Factor (PF)
|
1
|
|
|
Frequency
|
50/60Hz±0.1%
|
|
|
Switch Time (ms)
|
10 (APP/UPS mode) / 20 (GEN mode)
|
|
|
Wave Form
|
Pure Sine Wave
|
|
|
Overload Capacity (Battery Mode)
|
60s@102%-110% load; 10s@110%-130% load;
3s@130%-150% load; 0.2s@>150% load
|
|
|
Max. Efficiency (Battery Mode)
|
92.7%@24VDC
|
|
|
Parallel Quantity
|
NA
|
|
|
Charger
(PV / AC)
|
Solar Charger Type
|
MPPT
|
|
Max PV input current / power
|
18A / 5000W
|
|
|
MPPT Range@Operating Voltage (VDC)
|
40~450
|
|
|
Max PV Open Circuit Voltage (VDC)
|
500
|
|
|
Max PV Charge Current (A)
|
100
|
|
|
Max AC Charge Current (A)
|
100
|
|
|
Max. Charge Current (PV + AC) (A)
|
100
|
|
|
Battery
|
Normal Voltage (VDC）
|
24
|
|
Floating Charge Voltage (VDC)
|
27
|
|
|
Overcharge Protection (VDC)
|
30.5
|
|
|
Battery Type
|
Lead-acid / Lithium
|
|
|
Interface
|
HMI
|
LCD
|
|
Interface
|
RS232 / RS485 / CAN
|
|
|
Monitoring
|
Wifi(optional)
|
|
|
General Data
|
Ingress Protection
|
IP21
|
|
Operating Temperature
|
-10°C ~ 60°C
|
|
|
Relative Humidity
|
5% - 95% (Non-condensing)
|
|
|
Storage Temperature
|
-15°C ~ 60°C
|
|
|
Net Weight (kg)
|
11.6
|
|
|
Dimensions (H*W*D)
|
585*415*211 mm
|
|
|
Max. Operating Altitude
|
4000m (Derating above 1000m)
|
