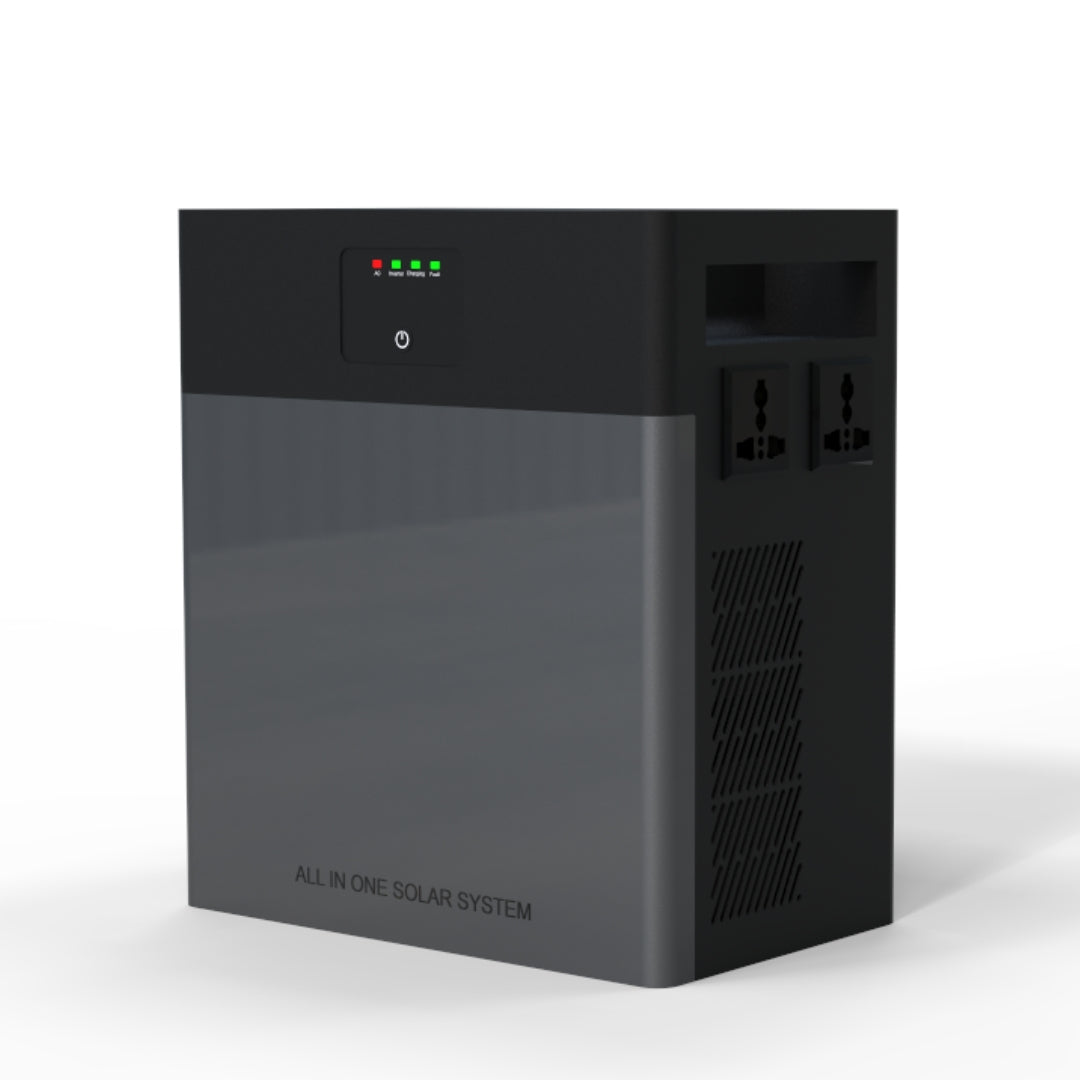

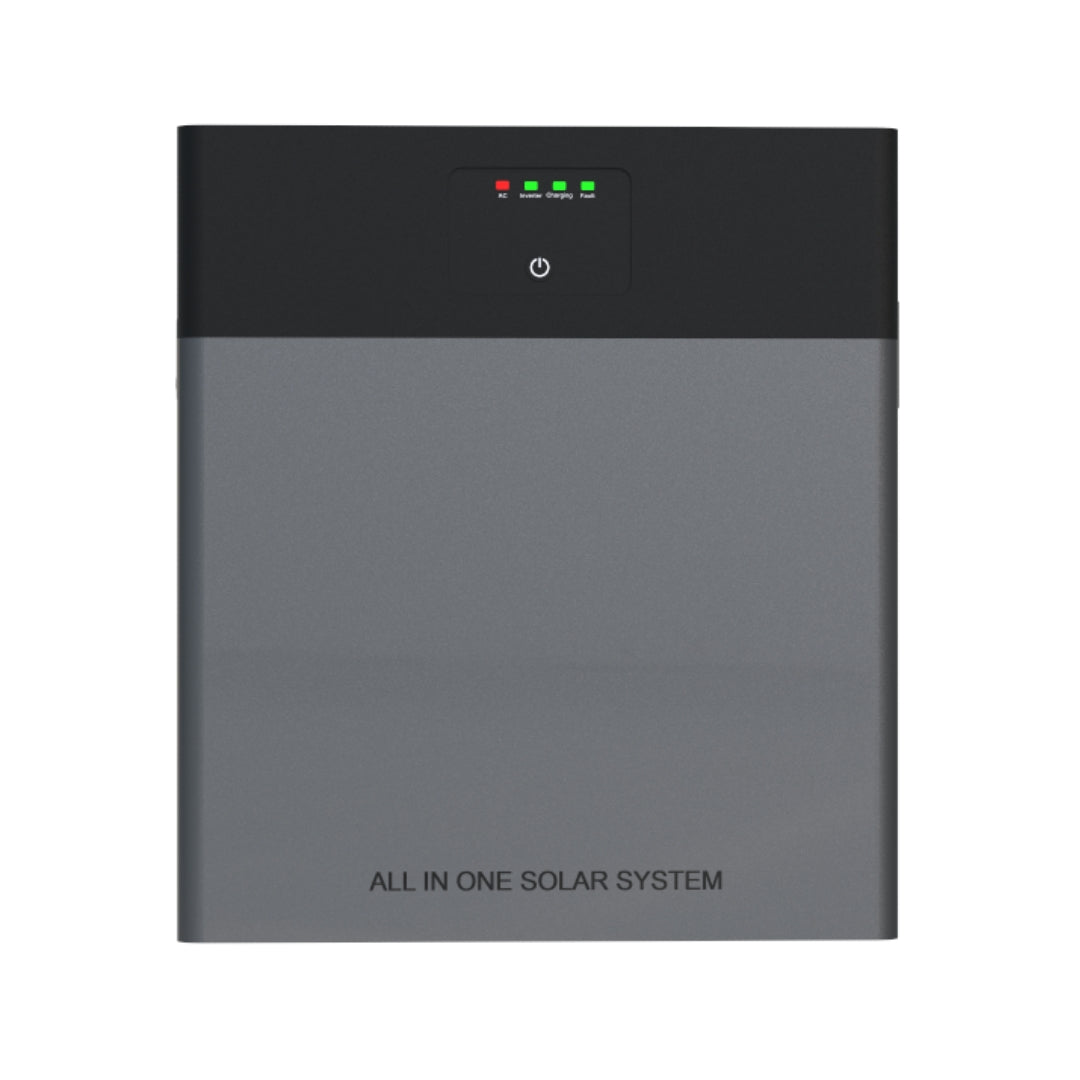

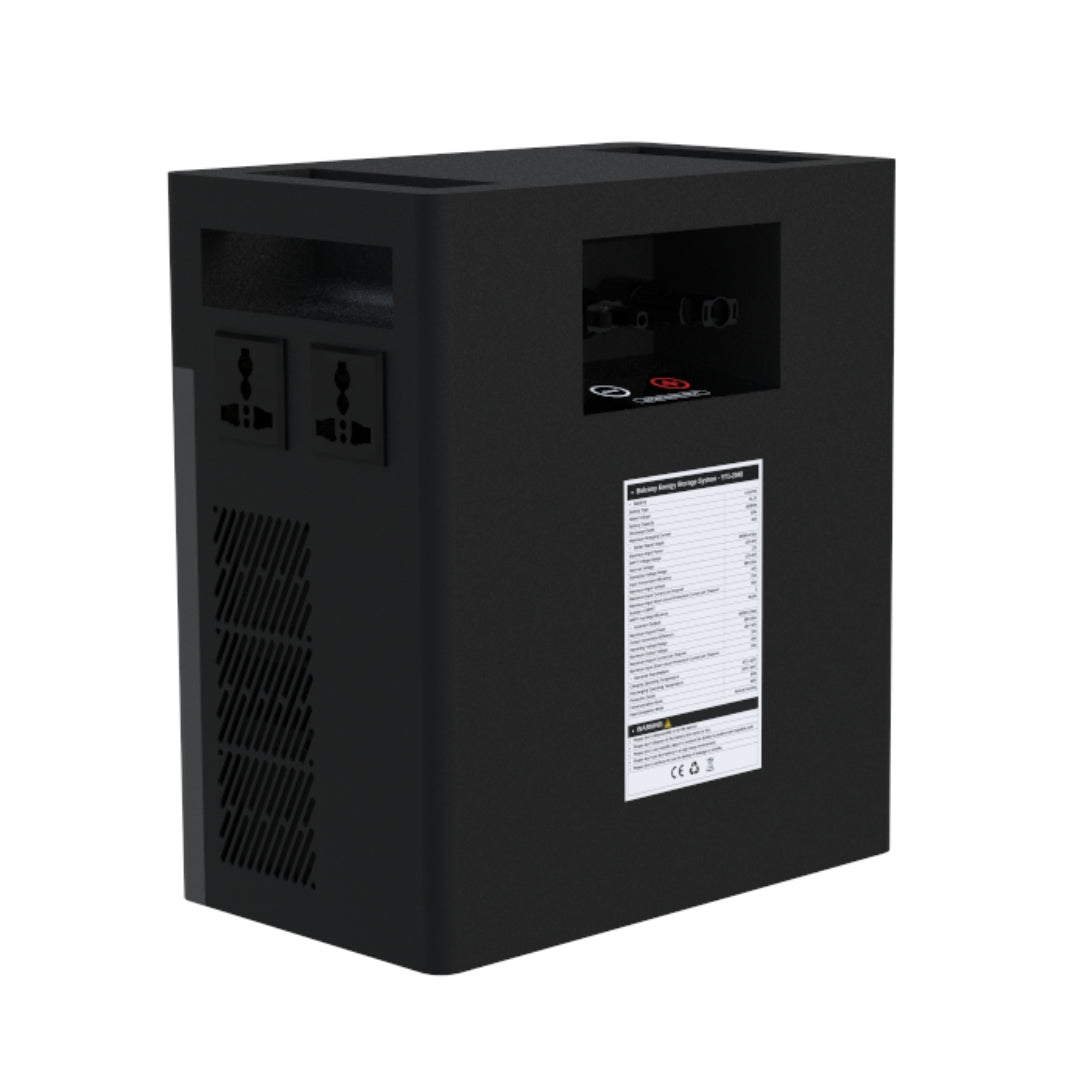

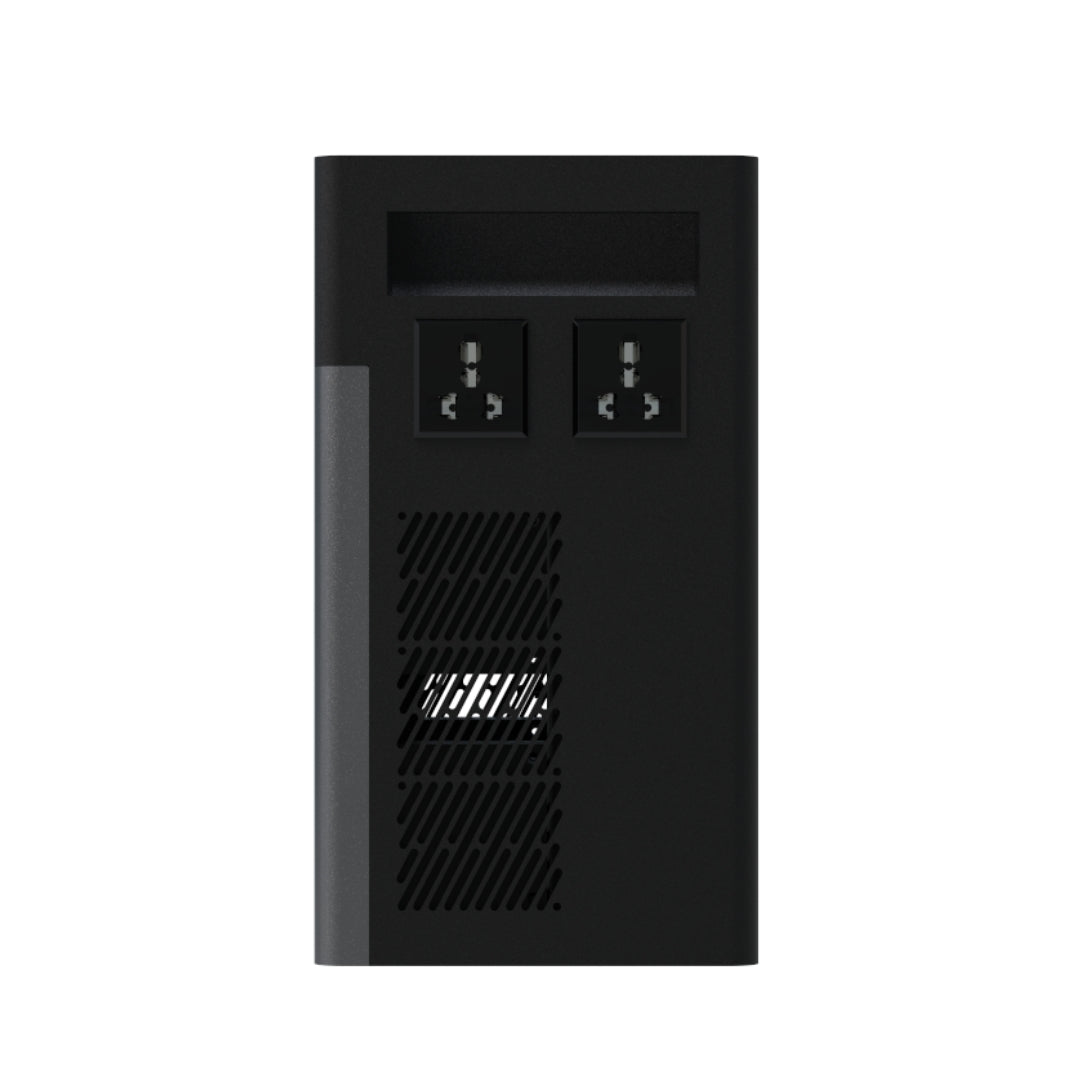

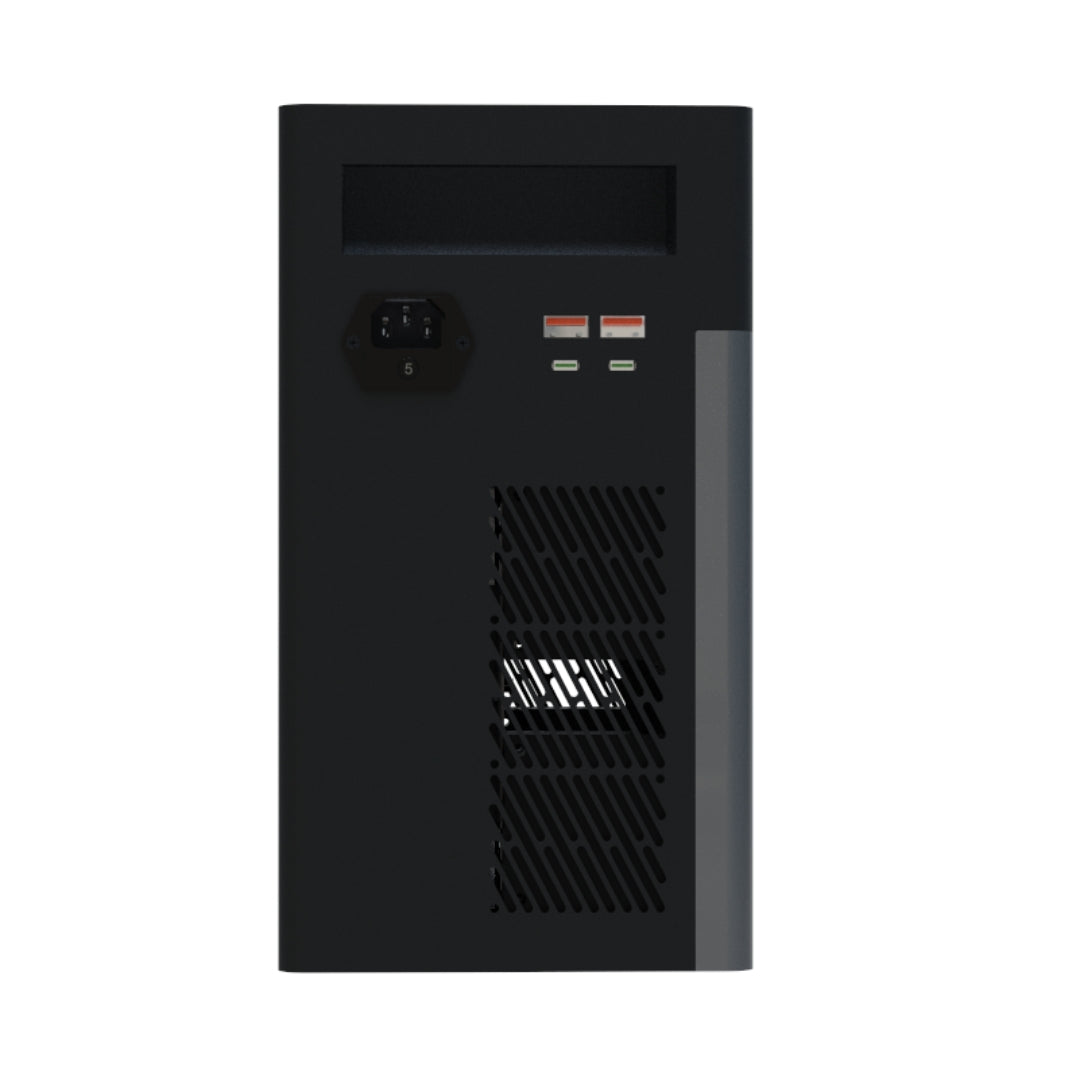

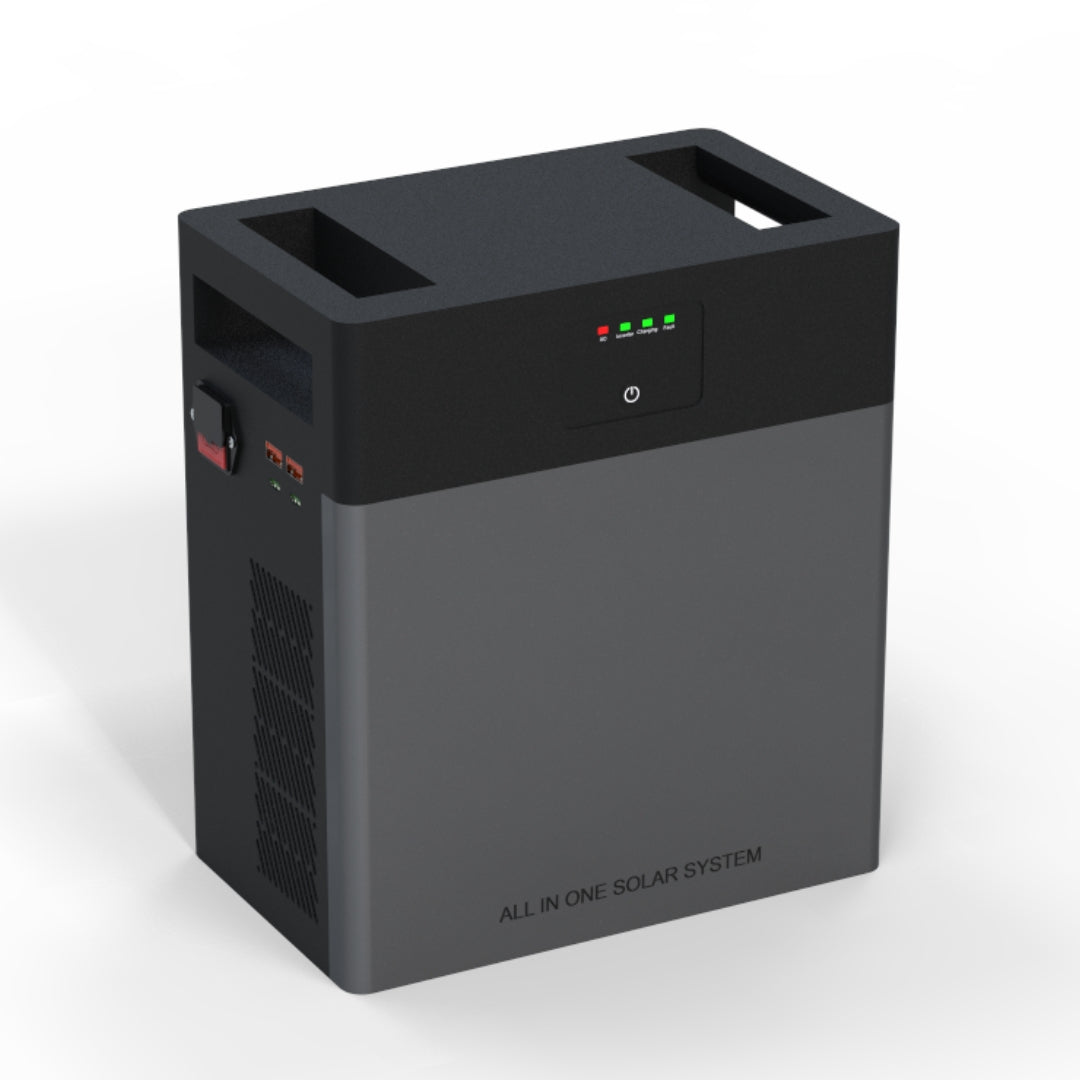

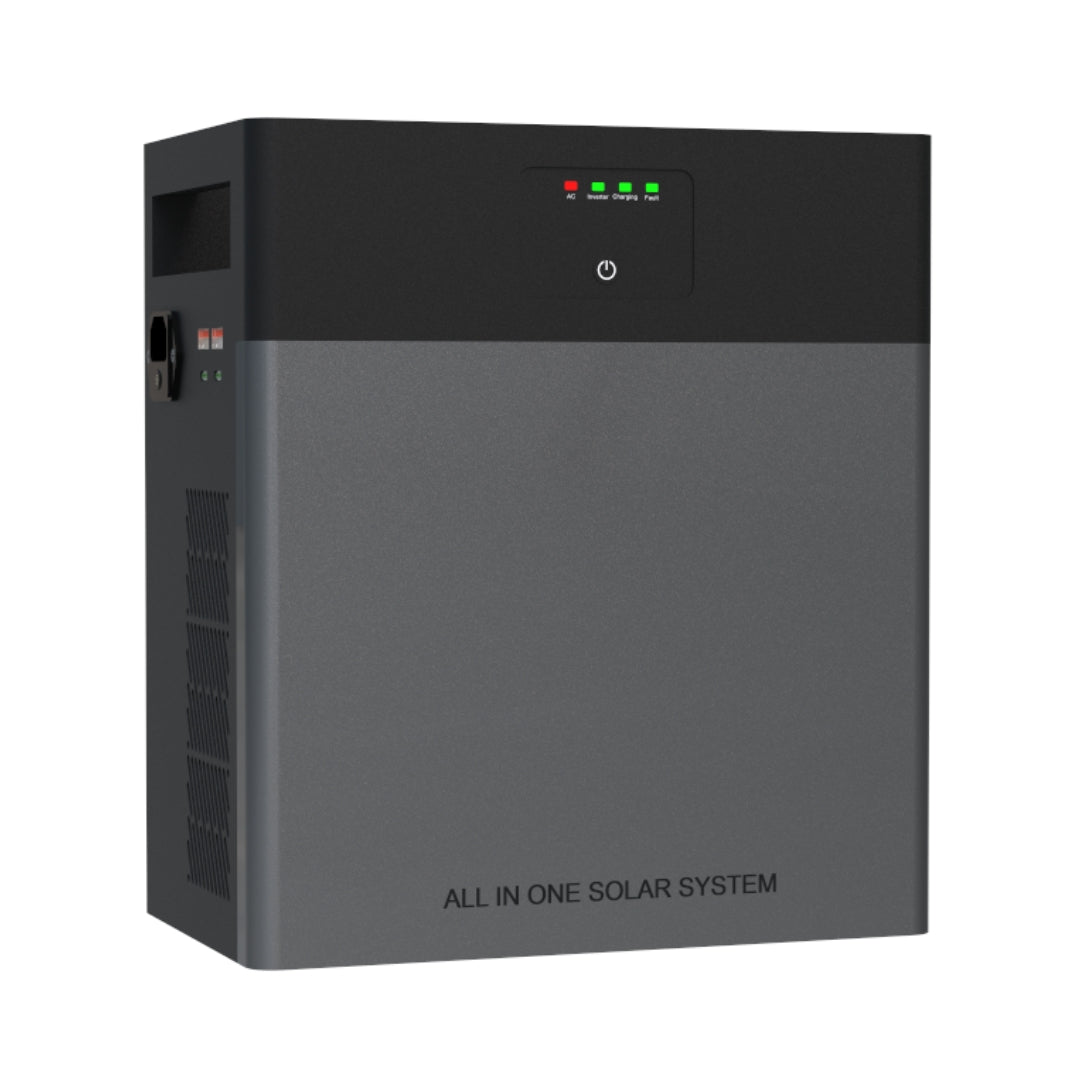

ESS300W-314-3.2
ESS300W-314-3.2
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
|
Product Overview
|
Rated Output Voltage
|
230Vac
|
|
Rated Output Power
|
300W
|
|
|
Battery Capacity
|
3.2V 314Ah（1004Wh）
|
|
|
Maximum PV Charging Power
|
200W
|
|
|
Maximum AC Charging Power
|
350W
|
|
|
UPS Mode Switching Time
|
≤10ms
|
|
|
PV Input
|
Maximum PV Charging Power
|
200W
|
|
PV Input Voltage Range
|
12–60Vdc
|
|
|
Maximum PV Input Current
|
≤11A
|
|
|
PV Under-Voltage Protection
|
11 ± 0.5Vdc
|
|
|
PV Under-Voltage Recovery
|
11.5 ± 0.5Vdc
|
|
|
PV Over-Voltage Protection
|
62 ± 1Vdc
|
|
|
PV Over-Voltage Recovery
|
60 ± 1Vdc
|
|
|
PV Conversion Efficiency
|
≥87%
|
|
|
PV MPPT Tracking Efficiency
|
≥98%
|
|
|
AC Input
|
Rated Input Voltage
|
230Vac
|
|
Input Voltage Range
|
150–270Vac
|
|
|
Under-Voltage Protection
|
145 ± 5Vac
|
|
|
Low-Voltage Recovery Point
|
150 ± 5Vac
|
|
|
Over-Voltage Protection
|
275 ± 5Vac
|
|
|
High-Voltage Recovery Point
|
265 ± 5Vac
|
|
|
Rated Input Current
|
4A
|
|
|
Maximum AC Charging Power
|
350W
|
|
|
AC Input Frequency Range
|
45–65Hz
|
|
|
Power Factor
|
≥0.98
|
|
|
AC Output
|
Rated Output Voltage
|
230Vac
|
|
Output Voltage Range
|
220–240Vac
|
|
|
Rated Output Power
|
300W
|
|
|
Inductive & Capacitive Load
|
300VA
|
|
|
Output Frequency
|
50/60Hz
|
|
|
Efficiency
|
≥85%
|
|
|
Output Waveform
|
Pure Sine Wave
|
|
|
DC Output
|
Rated Output Voltage
|
5Vdc
|
|
Maximum Output Current
|
2.4A
|
|
|
Output Ports
|
USB & Type-C
|
|
|
Dimension
|
Product Dimension
|
265*159*290mm
|
|
Package Dimension
|
320*214*408mm
|
