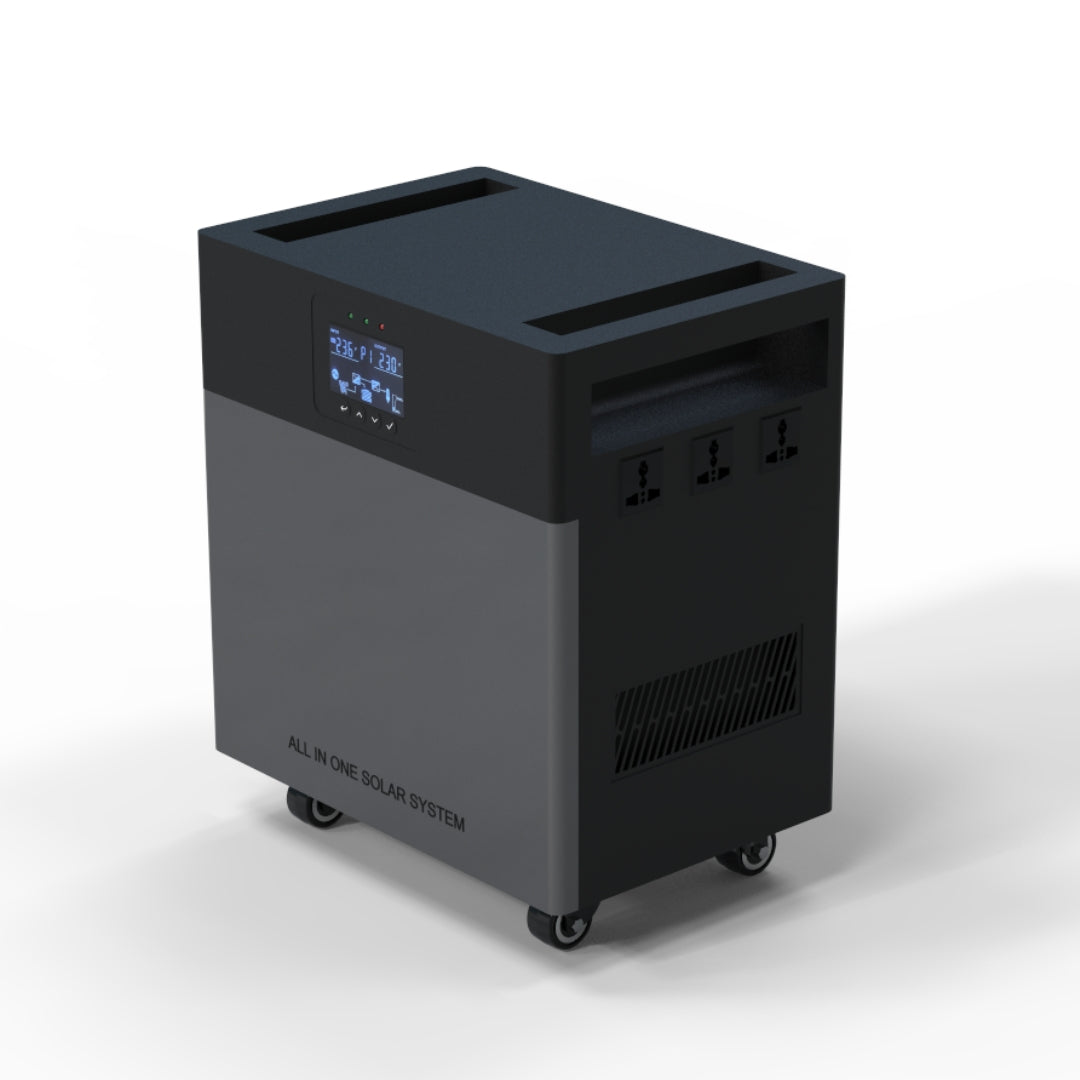

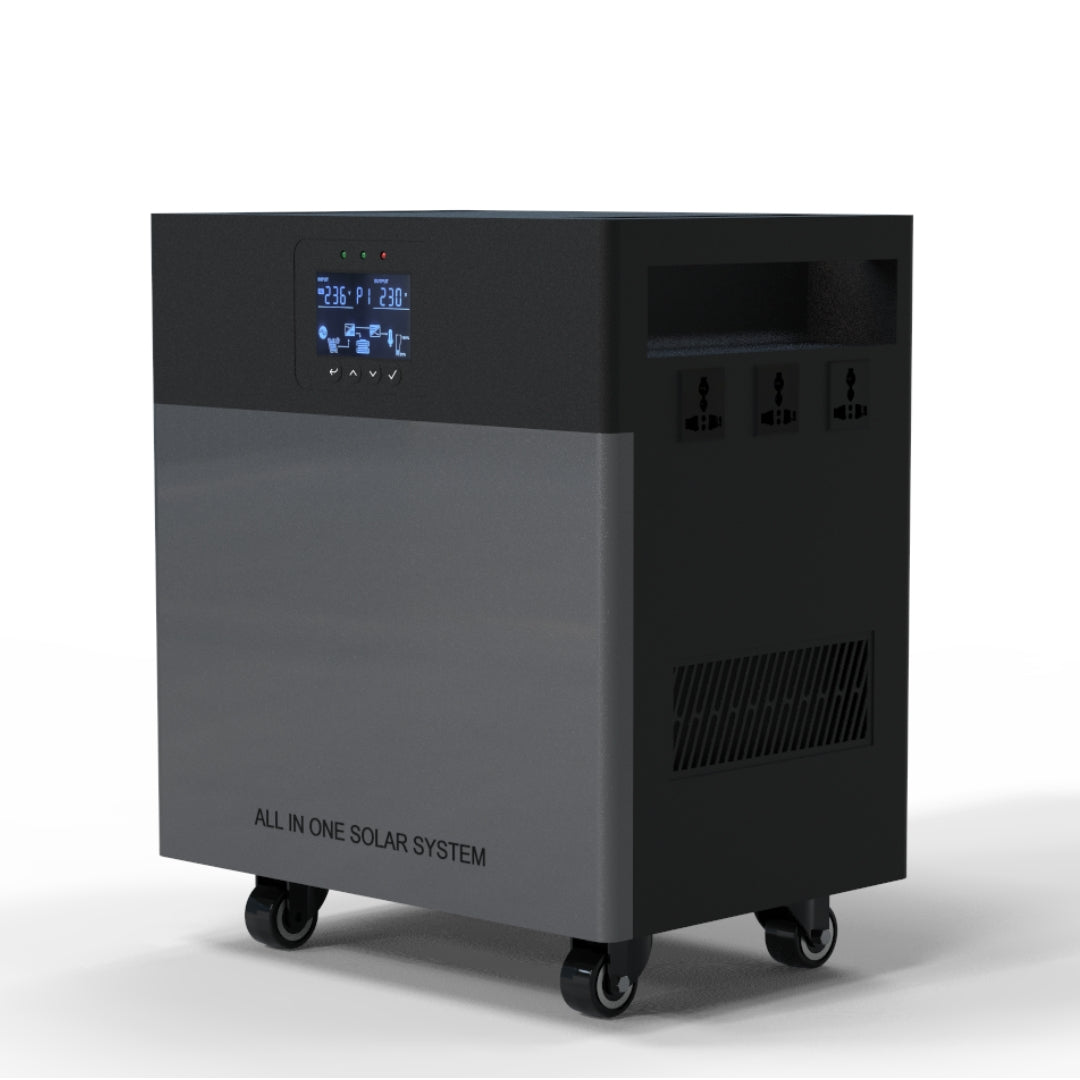

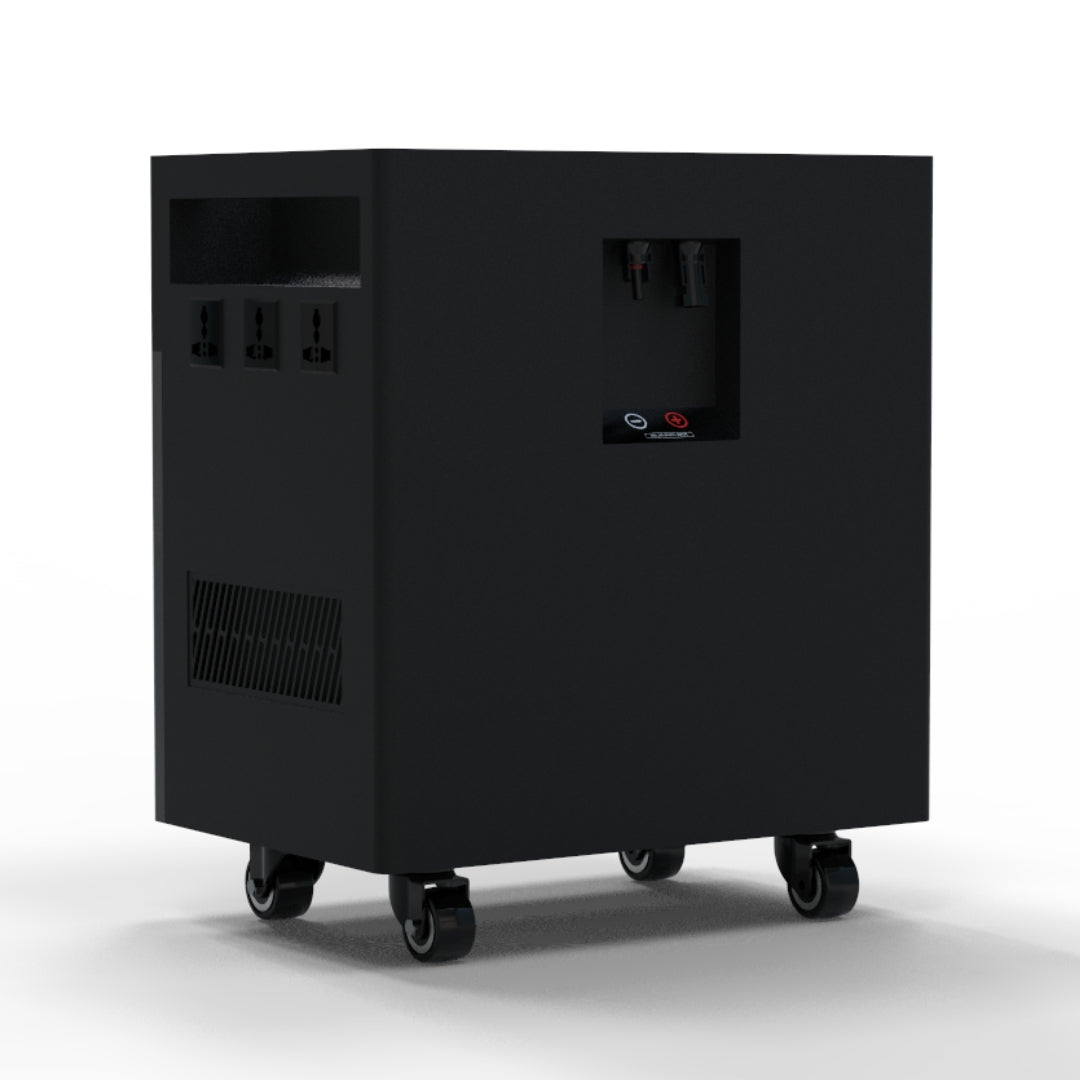

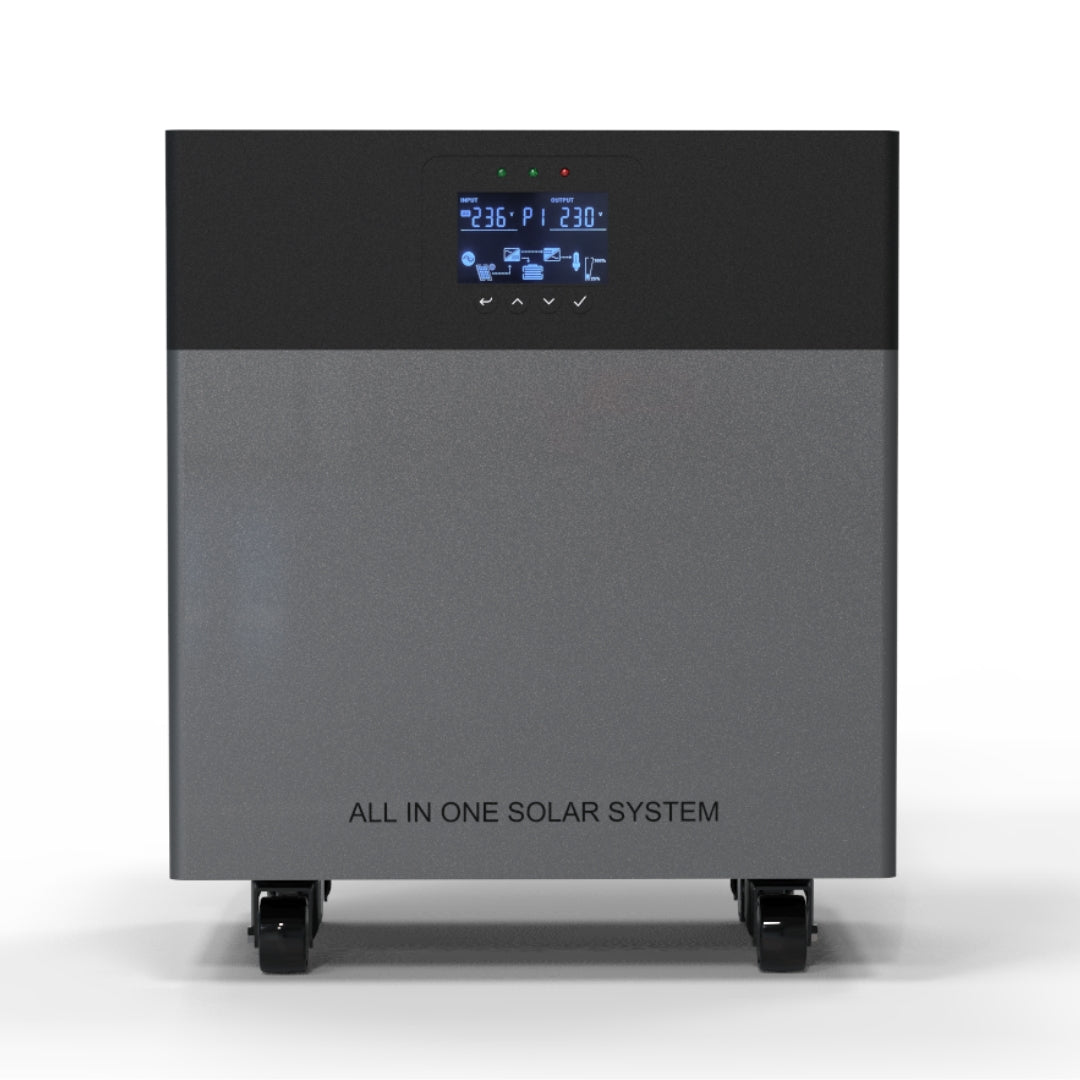

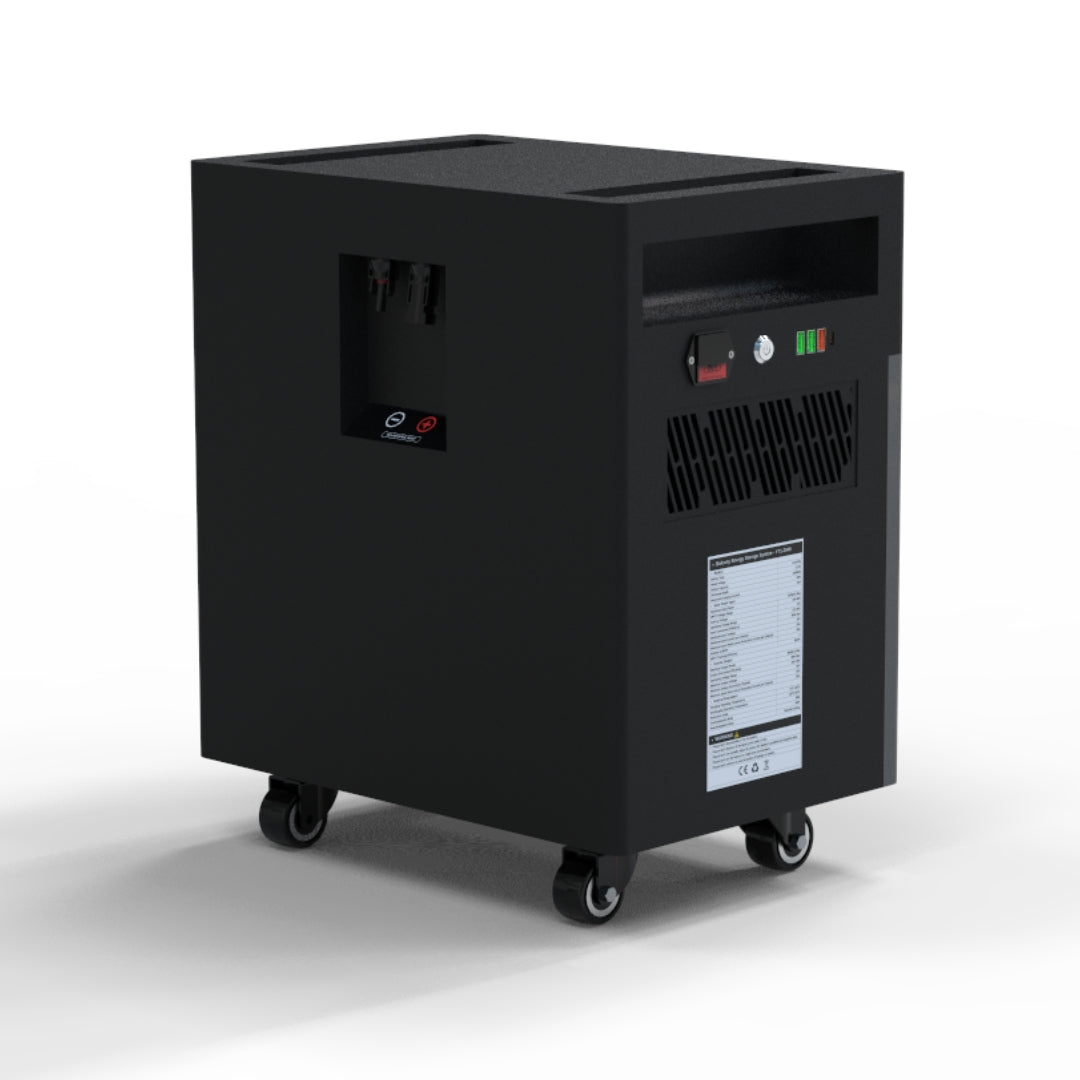

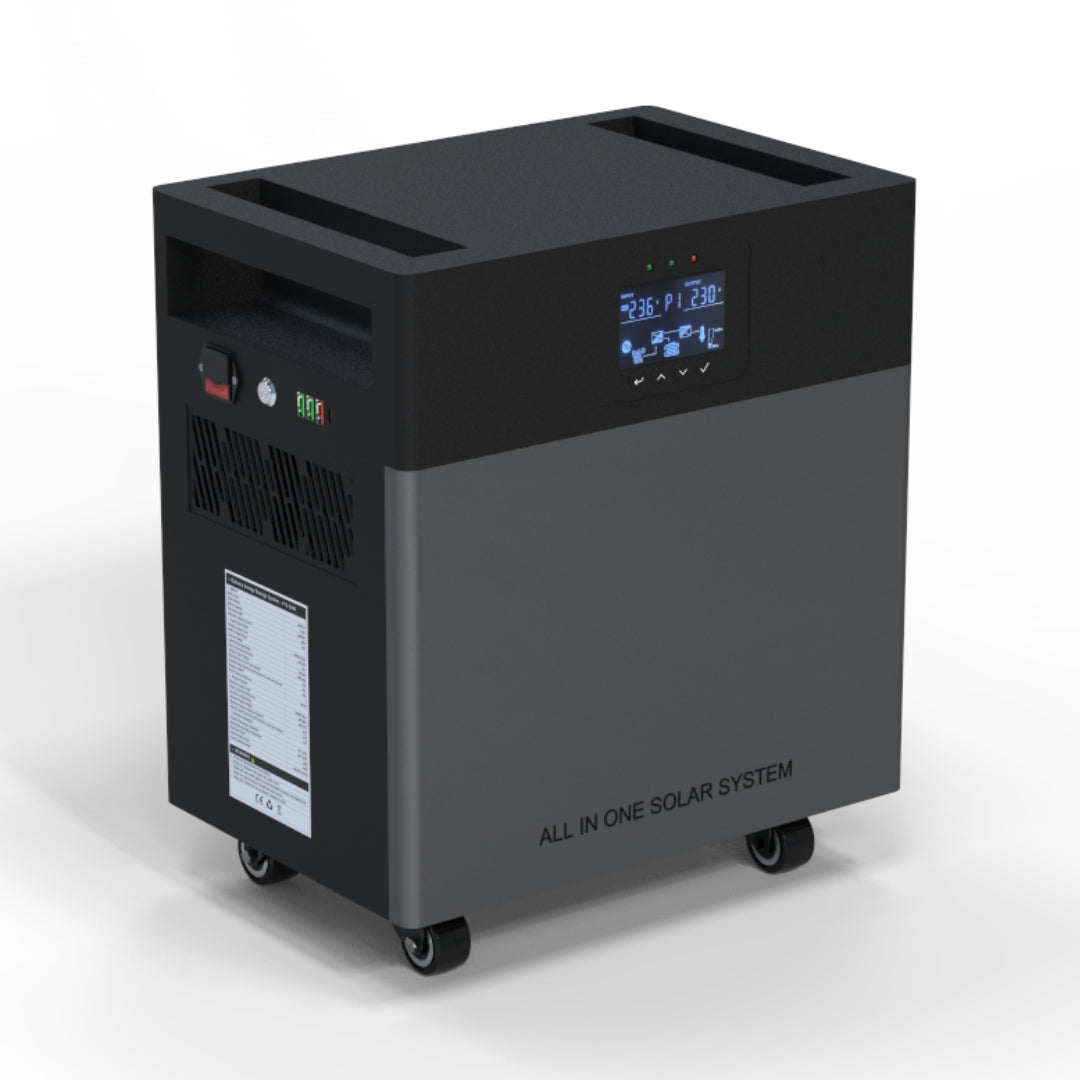

ESS2K5-314-12
ESS2K5-314-12
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
|
Product Overview
|
Rated Output Voltage
|
230Vac
|
|
Rated Output Power
|
2.5KW
|
|
|
Battery Capacity
|
12.8V 314Ah（4019Wh）
|
|
|
Maximum PV Charging Power
|
4000W
|
|
|
UPS Mode Switching Time
|
≤10ms
|
|
|
AC Input
|
Rated Input Voltage (VAC)
|
208 / 220 / 230 / 240; L+N+PE
|
|
Voltage Range (VAC)
|
90~280±3 (normal mode); 170~280±3 (UPS mode)
|
|
|
Frequency (Hz)
|
50 / 60 (Auto Adaptive)
|
|
|
AC Output
|
Rated Capacity (kW)
|
2.5
|
|
Surge Power (kVA)
|
5
|
|
|
Voltage (VAC)
|
208 / 220 / 230 / 240
|
|
|
Power Factor (PF)
|
1
|
|
|
Frequency
|
50/60Hz±0.1%
|
|
|
Switch Time (ms)
|
10 (APP/UPS/GEN mode)
|
|
|
Wave Form
|
Pure Sine Wave
|
|
|
Max. Efficiency (Battery Mode)
|
85%~88%
|
|
|
Charger
(PV / AC)
|
Solar Charger Type
|
MPPT
|
|
Max PV input current / power
|
10A / 3500W
|
|
|
MPPT Range@Operating Voltage (VDC)
|
45~450
|
|
|
Max PV Open Circuit Voltage (VDC)
|
500
|
|
|
Max PV Charge Current (A)
|
120
|
|
|
Max AC Charge Current (A)
|
120
|
|
|
Max. Charge Current (PV + AC) (A)
|
120
|
|
|
Battery
|
Battery Type
|
LiFePO₄
|
|
Battery Voltage
|
12.8V
|
|
|
Battery Capacity
|
314Ah
|
|
|
Battery Energy
|
4019.2Wh
|
|
|
DC Output
|
Rated Output Voltage
|
5Vdc
|
|
Maximum Output Current
|
2.4A
|
|
|
Output Ports
|
USB & Type-C
|
|
|
Dimension
|
Product Dimension
|
401*274*465mm
|
|
Package Dimension
|
525*458*334mm
|
