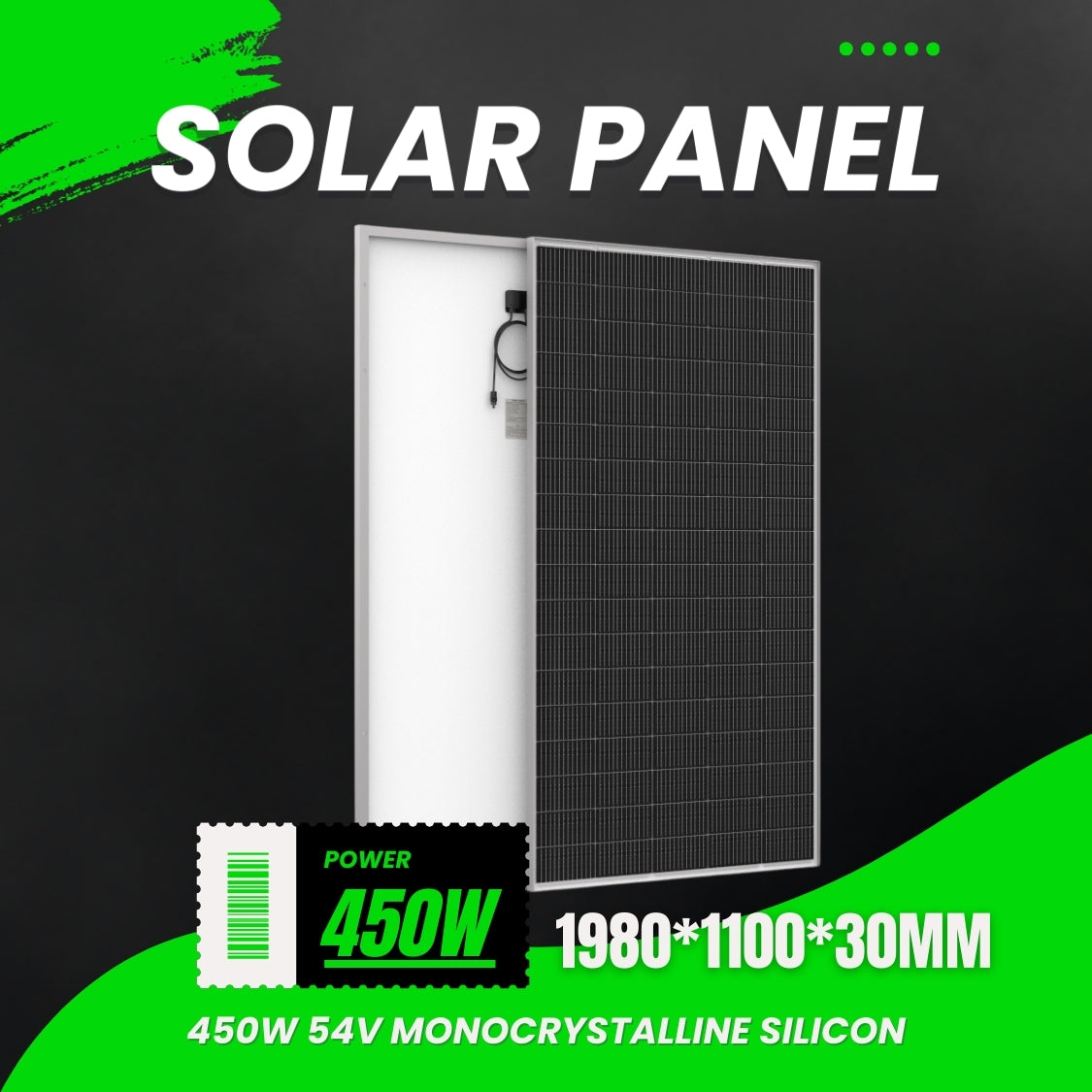

450w 1980x1100x30mm
450w 1980x1100x30mm
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
|
Electrical Characteristics (STC)
|
|
|
Maximum Power- Pmax
|
450W
|
|
Open Circuit Voltage - Voc
|
64.80V
|
|
Short- Circuit Current - Isc
|
8.83A
|
|
Voltage at Pmax -Vmp
|
54.00V
|
|
Current at Pmax - Imp
|
8.33A
|
|
Module Efficiency -ηm
|
20.66%
|
|
Power Tolerance
|
0, +4.99W
|
|
Maximum System Voltage
|
700Vdc (IEC / UL)
|
|
Maximum Series Fuse Rating
|
20A
|
|
Mechanical Specifications
|
|
|
External Dimensions
|
1980*1100*30mm
|
|
Weight
|
21.88KG
|
|
Solar Cells
|
Mono crystalline 210*105mm (5*18Pcs)
|
|
Front Glass
|
3.2 mm tempered glass
|
|
Frame
|
Aluminum
|
|

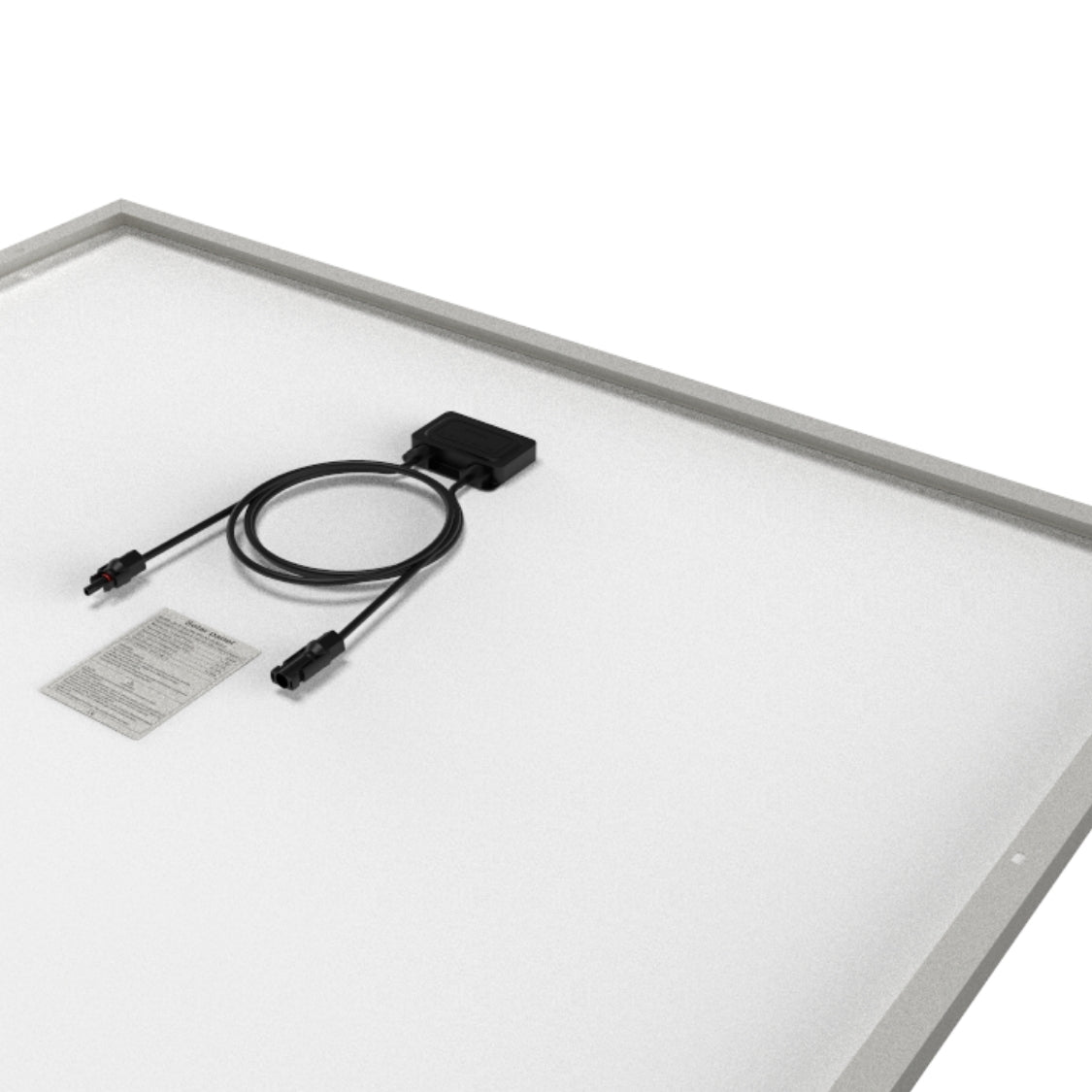

Junction Box
|
IP67
|
|
Output Cables
|
100CM 4mm² Cable |
|
Connector
|
MC4 Compatible
|
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
|
Packing Configuration
|
|
|
Module Type
|
210M450
|
|
Module Dimensions
|
1980*1100*30mm
|
|
Package Dimensions
|
1995*70*1115mm
|
|
Package Weight
|
45.77KG
|
|
Pieces/Package
|
2Pcs
|
|
Temperature Characteristics
|
|
|
Pmax Temperature Coe cient
|
-0.350%/°C
|
|
Voc Temperature Coe cient
|
-0.270%/°C
|
|
Isc Temperature Coe cient
|
+0.048%/°C
|
|
Operating Temperature
|
-40~+85°C
|
|
Nominal Operating Cell Temperature(NOCT)
|
45±2°C
|
