19.5KW+46.08KWH Solar System Solutions
19.5KW+46.08KWH Solar System Solutions
● System Configuration: 19.5kW inverter + 46.08kWh battery + 15.66kW solar panels
● Daily Power Generation: ≈ 56kWh
● Recommended For: Schools, dormitories, small factories, farms
● Typical Loads: Air conditioners, water pumps, welding machines, refrigerators
● Suggested Daily Usage: ≤ 55kWh/day
◆ Configuration List
| Product Name | Parameter | Quantity |
| Solar Panels | 580W | *27 |
| Hybrid Inverter | 6.5KW | *3 |
| LiFePO4 Battery | 51.2V300Ah | *3 |
| PV Combiner Box | 1 In 1Out | *1 |
| PV Combiner Box | 2 In 2Out | *1 |
| Breaker | 160A | *3 |
| Battery Cable | 0.5m 3AWG（33.7mm²） | *3 |
| Battery Cable | 1m 3AWG（33.7mm²） | *2 |
| PV Cable | 1*4mm² Red and Black | *80 |
| Connector | MC4 | *6 |
*The above configuration is for reference only. Free design is available upon request.
Main component information
-
IPV18214420M580
Regular price $66.86Regular priceUnit price per -

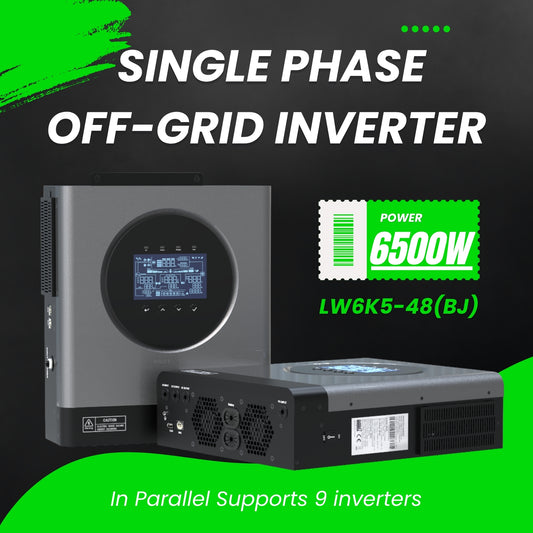

LW6K5-48(BJ)
Regular price $244.00Regular priceUnit price per -
15.36KWh LiFePO4 Battery
Regular price $1,130.00Regular priceUnit price per
