1.2KW+2.56KWH Solar System Solutions
1.2KW+2.56KWH Solar System Solutions
● System Configuration: 1.2kW inverter + 2.56kWh battery + 640W solar panels
● Daily Power Generation: ≈ 2.3kWh
● Recommended For: Rural homes, small shops, lighting, and phone charging
● Typical Loads: 3–5 lights, fan, TV, phone charging
● Suggested Daily Usage: ≤ 2kWh/day
◆ Configuration List
| Product Name | Parameter | Quantity |
| Solar Panels | 320W | *2 |
| Hybrid Inverter | 1.2KW | *1 |
| LiFePO4 Battery | 12.8V200Ah | *1 |
| PV Combiner Box | 1 In 1Out | *1 |
| Breaker | 125A | *1 |
| Battery Cable | 0.5m 4AWG（25mm²） | *1 |
| PV Cable | 1*4mm² Red and Black | *10 |
| Connector | MC4 | *2 |
*The above configuration is for reference only. Free design is available upon request.
Main component information
-
IPV2106420M320
Regular price $47.06Regular priceUnit price per -

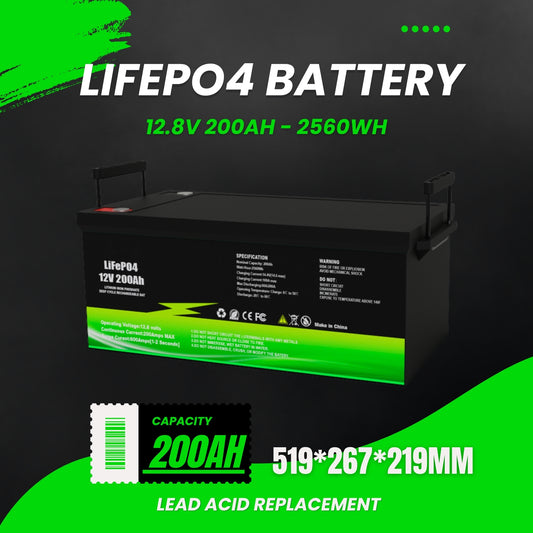

2.56KWh LiFePO4 Battery
Regular price $229.00Regular priceUnit price per
